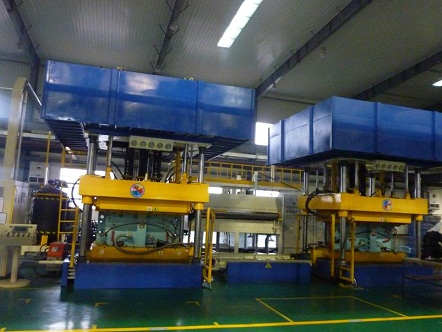

l 设备名称：自动液压模架

Name: Automatic Hydraulic Mould Carrier

l 型号：HC-M2000/14型

Type: HC-M2000/14

l 数量：1台

QTY: 1 sets

l 电器控系统: 1套

Electric control system: 1 sets

l 设备技术参数明细/technique parameters list

模板锁紧面尺寸 2100mm*1400mm

Plate size 2100mm*1400mm

闭合高度 300-900mm 可调

Height of Closing 300-900mm adjustable

开模角度 0-60°

Upper plate tilting to open 0-60°

锁模力 200kn

Closing force 200KN

开模力 70kn

Opening force 70KN

下模板行程 200mm

Lower plate stroke 200mm

开、闭模时间 12s

Complete opening/closing time 12s

模具固定栓 DIN 650-18H12-(16)

Tools fixation slots DIN 650-18H12-(16)

模具温度 50°-80°

Mould temperature 50°-80°

控制电压 DC24V

Control power DC24V

l 生产流程说明：

Producing process:

- 液压系统固定在地面上，驱动1台模架开闭动作

Hydraulic system is fixed on the floor, which is used to drive mould carrier opening and closing.

- 锁模流程：整理模具-喷脱模剂-安全钩脱钩-合模-锁模缸启动锁模-液压缸顶出模架-闭模灌注-熟化-开模

Mould locking process: clean mould-spray release agent-safety hook release-close mould-cylinder start-closing inject-curing-open

l 灌注方式：闭模式灌注

Injection way: closing injection

l 控制操作系统：一套

Control system: 1 set

采用西门子公司PLC中央控制，OP操作系统具有强大的功能菜单，显示压力、时间、温控、生产参数设定、安全监控、警示等。

PLC adopts Germany SIMENS; touch screen has powerful menu function, which can display the pressure, time, temperature control, producing parameters, safety monitoring, alarm and so on.

l 模具加温设备：1台

Heating equipment: 1 set

- 功率12KW*1台通过水循环分别给2套液压模具加温及温度控制

1 set of 12 kw cycle water to heat the mould and control the temperature.

- 可分别实行独立温控

Control the temperature separately.

l 设备安全保护系统：

Safety system:

- 整套模架升降开闭由液压系统自动完成

The mould carrier’s lift, opening and closing are finished by hydraulic system.

- 模架配有防脱落机械保险装置

Anti fall mechanical safety device.

- 模具两侧装有红外线光栅安全感应器

There are red-ray barrier sensors on the both 2 sides of the mould carrier.

- 设备设有急停及安全自动警示装置

Emergency stop and alarm system

- 设备配有防护栏

The equipment has light barriers.
