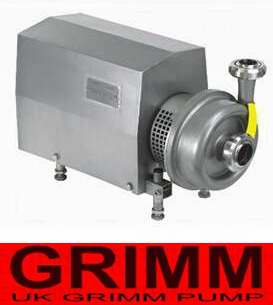

英国GRIMM格林进口卫生级离心泵 UK GRIMM imported sanitary centrifugal pump

英国GRIMM格林进口卫生级离心泵概述：
         进口卫生级离心泵属单吸、单级、离心式卫生泵，适合输送牛奶、饮料、酒等各种液体，是食品、化工、医药、饮料等行业不可缺少的输送设备。吸取之最高温度为200oC左右。其中高扬程泵特别适用于管式杀菌、酸奶持温设备、CIP清洗等阻力较大的系统中应用。

英国GRIMM格林进口卫生级离心泵特点：
            进口卫生级离心泵主要由泵体、泵座、电动机部分组成，各部分分别由螺栓联接，底座的支撑脚可任意调节，便于安装，无需固定的安装基础。安装时可根据不同需要把出口管安装成垂直方向或水平方向。离心泵采用圆滑过度、刚性结构、后壁设计，在材料的选用上泵体、泵盖、叶轮等与物料接触的零件全由AISI316或AISI304不锈钢制造。机械轴封采用高质量的不锈钢和碳化硅定制而成。大大提高了耐磨性和滋润型，延长了适用寿命。离心泵制作时泵体、叶轮采用整体精密浇铸，所有零件表面处理。安装时由专用工装夹具保证尺寸间隙。轴封处采用开启式结构，故即使轴封处有少量泄露，亦可及时观察。即使短时间内未察觉也不会满溢到电动机。从而保证了电动机的使用寿命。

英国GRIMM格林进口卫生级离心泵技术参数：
规　　格：3T-180T, 0.75KW-75KW
材　　质：SUS304 SUS316L (在材料的选用上泵体、泵盖、叶轮等凡与物料接触之零件由SUS316L或SUSI304不锈钢制造)
标　　准：DIN、 SMS
叶　　轮：分开式叶轮和半闭式叶轮。
表面处理：接液部分抛光，其余亚光或喷砂处理。
工作条件：卫生离心泵属高低液位几水平输送，有一定吸力。
最大进口压力：0.5MPa
温度范围：-10°C~+140°C(EPDM)
可冲洗机械密封：
       水压：最高0.1MPa
       水量：0.25-0.5L/min

表面处理：内接液部分抛光，其余亚光或喷砂处理
内表面处理：抛光
连接方式：螺纹活接，卡箍，法兰
过液密封材料：乙丙橡胶(EPDM)，硅橡胶
英国GRIMM格林进口卫生级离心泵电机：
1、根据配置主要采用“ABB,西门子,东元”品牌的三相交流电机，按照国际电工委员会IEC60034.IEC60072标准设计制作，符合欧共体“CE”标记要求。
2、可供选用防爆电机，以满足不同场合的需要。
3、优越的电气性能、低噪音、低震动，电机的标准设计防护等级为IP55，绝缘等级为F级。
4、工作电压：
≤3Kw,220-240V/380-420V,△/Y
＞3Kw,380-420V/660-690V,△/Y
5、频率：50Hz/60Hz
6、工作方式：连续（SI）
7、转速：标准泵的转速为2900r/min
英国GRIMM格林进口卫生级离心泵应用：
药品类：输液，蒸馏水，高纯水，含颗粒3-6毫米的中药液体，浸出液；

化妆品类：染料，酒精，香精油；

乳品类：乳清，奶油，牛奶，糖液；

饮料类：酒精，白酒，啤酒，麦芽汁， 发酵液，果汁饮料，带颗粒饮料；

其它：糖果业，焙烤业，化工领域等。

UK GRIMM imported sanitary centrifugal pump summary:

           imported sanitary grade centrifugal pump is a single suction, single-stage and centrifugal sanitary pump, suitable for the transportation of milk, beverages, liquor and other liquids. It is an indispensable transportation equipment in the food, chemical, pharmaceutical, beverage and other industries. The maximum temperature is about 200oC. Among them, the high lift pump is especially suitable for the pipe type sterilization, yogurt holding equipment, CIP cleaning and other large resistance system applications.

UK GRIMM imported sanitary centrifugal pump characteristic:

           The imported sanitary centrifugal pump is mainly composed of pump body, pump seat and motor. Each part is respectively connected by bolts, and the supporting foot of the base can be adjusted at will, so that it is easy to install and needs no fixed installation foundation. When installing, the outlet pipe can be installed in a vertical direction or horizontal direction according to different requirements. Smooth, rigid structure, wall adopts the design of centrifugal pump, in contact with the material in the material selection of pump body, pump cover, impeller and other parts of the whole manufacture by AISI316 or AISI304 stainless steel. Mechanical shaft seals are made of high quality stainless steel and silicon carbide. Greatly improve the wear resistance and moisture type, and extend the applicable life. When the centrifugal pump is made, the pump body and impeller adopt integral precision casting, and all the parts are treated with surface. When installing, guarantee the dimension clearance by special jigs and fixtures. The shaft seal adopts an open structure, so even if there is a little leakage in the shaft seal, it can be observed in time. Even if it is not detected for a short time, it will not overflow to the motor. Thus, the service life of the motor is guaranteed.

UK GRIMM imported sanitary centrifugal pump technical parameters:



Specification: 3T180T, 0.75KW-75KW

Material: SUS304 SUS316L (in the selection of materials of the pump body, pump cover, impeller and other parts all contact with the material of stainless steel made by SUS316L or SUSI304)

Standard: DIN, SMS

Impeller: split impeller and semi closed impeller.

Surface treatment: wetted parts polishing, the matte or sandblasting.

Working conditions: sanitary centrifugal pump is of high and low liquid level. It has a certain suction.

Maximum inlet pressure: 0.5MPa

Temperature range: -10℃~+140℃(EPDM)

Washable mechanical seal:

        Water pressure: maximum 0.1MPa

        Water quantity: 0.25-0.5L/min

Surface treatment: the remaining portion of the polishing liquid inscribed, matte or sandblasting

Internal finish: polishing

Connection: thread, live, clamp, flange

Liquid sealing material: ethylene propylene rubber (EPDM), silicone rubber

UK GRIMM imported sanitary centrifugal pump electric machinery:



1.According to the configuration, mainly using "ABB, SIEMENS, East yuan" brand three-phase AC motor, according to the International Electrotechnical Commission IEC60034.IEC60072 standard design and production, in line with EC "CE" mark requirements.

2.Explosion-proof motor can be used to meet the needs of different occasions.

3.Superior electrical performance, low noise, low vibration, motor standard design, protection level is IP55, insulation class is F level.

4.Work voltage:

   3Kw, 220-240V/380-420V, /Y

   3Kw, 380-420V/660-690V, /Y

5.Frequency: 50Hz/60Hz

6.Work: continuous (SI)

7.Speed: standard pump speed of 2900r/min

UK GRIMM imported sanitary centrifugal pump application:

Medicine: infusion, distilled water, high pure water, containing 3-6 millimeters of Chinese medicine liquid, leaching solution;

Cosmetics: dyes, alcohol, essential oils;

Dairy products: milk, cream, whey, sugar;

Beverages: alcohol, spirits, beer, wort, fermented juice, fruit juice, and soft drinks;

Others: Confectionery, bakery, chemical, etc.
