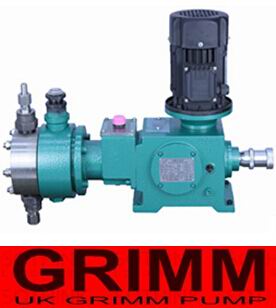

英国GRIMM格林进口液压隔膜计量泵 UK GRIMM imported hydraulic diaphragm metering pump

英国GRIMM格林进口液压隔膜计量泵概述：

          泵的液力端和隔膜组成工作腔，由活塞驱动的液压油均匀作用于隔膜做周期性变形、从而驱动隔膜做往复运动的可调节流量的容积泵，叫液压隔膜计量泵。

英国GRIMM格林进口液压隔膜计量泵特点：



1、无动密封，无泄漏，维修方便，低噪音，使用方便。
2、工作压力可达69MPa，计量精度可达±1％；单缸泵流量范围：0.2L/h-12000L/h。
3、计量精度优于机械隔膜泵，密封性能优于柱塞泵。
4、流量大小控制通过调节冲程长度和变频调速来实现，配冲程调节器或变频可以实现远程自动控制。
5、介质的使用温度不宜超过100℃，不宜低于-30℃，否则影响隔膜寿命。
6、新型的三阀结构，限位补油机构的应用，即保证液压腔内液压油的充满度，又避免了补油过量，防止液压冲击，从而使隔膜两侧受力平衡，提高隔膜的使用寿命。隔膜寿命可提高到8000h以上。
7、在输送特殊介质时，可采用双隔膜带隔膜破裂报警装置，防止隔膜破裂时，介质与液压油混合引起事故。

英国GRIMM格林进口液压隔膜计量泵技术参数：



流量范围：10-23000L/h
压力范围：0.8-50MPa
电机功率：0.37-11kw
额度电压：110V、220V、380V、420V，50HZ、60HZ
驱动方式：两相、三相标准等级或防爆电机
流量控制：手动控制或自动控制(接收4-20mA信号)
连接方式：直管焊接、法兰
过流材质：SS304、SS316、SS304+PTFE、SS316+PTFE
隔膜材质：PTFE
柱塞材质：SS304+陶瓷、LSS316+陶瓷
阀座材质：SS316
单向阀材质：SS304、SS316
阀       球：ZrO2、陶瓷、SS304、SS316
防护等级：IP55、IP54
环境温度：-30℃～80℃





英国GRIMM格林进口液压隔膜计量泵应用领域：

             适用于由一般常温清水直至具有强腐蚀，易挥发、易结晶、易燃、易爆、剧毒、恶臭、腐蚀性强，比重大、中等粘度，有放射性或其它贵重液体等。同时也可输送悬浮液体，对一些为防止隔膜破裂后，介质与液压油混合引起事故，对易燃易爆、剧毒及贵重液体时，可选用双隔膜计量泵并带隔膜破裂报警装置。

UK GRIMM imported hydraulic diaphragm metering pump summary:

           The hydraulic end of the pump and a diaphragm chamber, the hydraulic oil piston driven by the uniform effect on diaphragm periodic deformation, thereby driving the diaphragm pump with adjustable flow volume do reciprocating motion, called hydraulic diaphragm metering pump.



UK GRIMM imported hydraulic diaphragm metering pump characteristic:

















1. No action seal, no leakage, easy maintenance, low noise, easy to use.

2. Work pressure up to 69MPa, measuring accuracy of up to + 1%; single cylinder pump flow range: 0.2L/h-12000L/h.

3. Measuring accuracy is better than mechanical diaphragm pump, sealing performance better than piston pump.

4. The flow size control by adjusting the length of stroke and variable frequency speed to achieve, with stroke regulator or frequency conversion can achieve remote automatic control.

5. The use of medium temperature should not exceed 100 degrees, should not be lower than -30 degrees, or affect the diaphragm life.

6. The new three valve structure, limiting the application of the oil feeding mechanism, which is to ensure the full degree of the hydraulic oil inside, and avoid excessive oil filling, to prevent hydraulic shock, so that both sides of the diaphragm force balance, improve the service life of the diaphragm. Diaphragm life can be increased to more than 8000h.

7. In the transport of special media, you can use double diaphragm with diaphragm rupture alarm device, to prevent the diaphragm rupture, the media and hydraulic oil mixed accident.

UK GRIMM imported hydraulic diaphragm metering pump technical parameter:























Flow range: 10-23000L/h

Pressure range: 0.8-50.0MPa

Motor power: 0.37-11kw

Limit voltage: 110V, 220V, 380V, 420V, 50HZ, 60HZ

Driving mode: two phase, three phase standard class or explosion-proof motor

Flow control: manual control or automatic control (receive 4-20mA signal)

Connection: straight pipe welding, flange

Over current material: SS304, SS316, SS304+PTFE, SS316+PTFE

Diaphragm material: PTFE

Plunger material: SS304+ ceramic, LSS316+ ceramic

Seat material: SS316

Check valve material: SS304, SS316

Valve ball: ZrO2, ceramic, SS304, SS316

Protection level: IP55, IP54

Ambient temperature: -30 ~ 80 DEG C

UK GRIMM imported hydraulic diaphragm metering pump application area:













         It is suitable for general water at ordinary temperature, until it has strong corrosion, volatile, easy to crystallize, flammable, explosive, poisonous, foul smelling, corrosive, more important, medium viscosity, radioactive or other precious liquid, etc.. At the same time, it can also convey some of the suspension liquid, to prevent rupture of diaphragm after mixed medium with hydraulic oil caused by accident, flammable and explosive, toxic and expensive liquid, can use double diaphragm metering pumps and diaphragm rupture alarm device.

进口液压隔膜计量泵官网：http://www.021fmc.cn/aspcms/product/2018-5-9/1316.html



GRIMM中国：

    上海秉奇阀门有限公司为GRIMM公司在中国的总代理，是中国拥有GRIMM代理权及销售权，主要为中国地区客户提供服务与技术支持，同时，秉奇人员也积极参与总部技术培训学习，并不断掌握产品原理、实际运作、工程技术做为基石，完善对中国地区客户需求。

关于GRIMM：

          英国格林（GRIMM）国际有限公司是亚太地区流体控制领域的主要生产和供应商之一，公司总部位于克莱福德，拥有一支有经验的研发队伍，实行全球统一设计，统一标准，在水泵领域内处于领先地位。在许多个国家均有生产水泵基地，中国由上海秉奇阀门负责中国市场各项业务与技术支持中心，同时向中国市场销售。

       英国格林（GRIMM）产品已广泛应用于市政给排水、建筑、石油、化工、液化气、食品、制药、发电、冶金、矿产、锅炉蒸汽系统、压力容器、原子能、航空、火箭等各领域，以及人们日常生活中。

       英国格林（GRIMM）主要产品有：管道泵、离心泵、隔膜泵、磁力泵、真空泵、潜水泵、排污泵、计量泵、卫生级泵、罗茨风机等系列产品。

服务体系：

GRIMM品质：

       GRIMM公司注重产品质量及使用寿命，全部采用先进制造技术和生产设备，并坚持不懈研发新产品，为确保不间断的全过程质量控制，在生产过程中采用(SPC)过程控制和(TQM)全面质量管理；GRIMM的严格规范实现了不让品质拖节，有效保障产品每个细节达到的性能指标。

GRIMM专业：

       掌握核心的流体控制技术，提供市场领先的产品、服务和解决方案，帮助用户提高效率，带来至关重要的基础设施。

GRIMM服务：

       我们与用户紧密合作，支持一系列系统使用技术和文件报告，提供售前、售中、售后服务和技术支持，有了您的信任与支持，我们将更完善、更高效提供水泵流体技术方案。

GRIMM china:

         Shanghai Bingqi Valve Co., Ltd. for GRIMM company general agent in China, is China with GRIMM proxy and sales rights, provide service and technical support, mainly for Chinese customers at the same time, will also actively participate in the training of technical personnel of butterfly learning headquarters, and continue to grasp the product principle, practical operation and Engineering Technology based on customer demand, improve the Chinese area.

about GRIMM:

         Uk GRIMM International Co., Lid is the field of fluid control in the Asia Pacific region is one of the main production and suppliers, the company headquarters is located in Clay Forde, has an experienced R & D team, the implementation of a global unified design, unified standards, a leading position in the field of water pump. In many countries, there are production pump base, China by the Shanghai Bingqi valve, responsible for the Chinese market business and technical support center, while selling to the Chinese market.

       Uk GRIMM products have been widely used in various fields for municipal drainage, construction, petroleum, chemical, gas, food, pharmaceutical, power generation, metallurgy, mining, boiler steam system, pressure vessel, atomic energy, aerospace, rockets, and people's daily life.

       Uk GRIMM the main products are: pipeline pump, centrifugal pump, diaphragm pump, magnetic pump, vacuum pump, submersible pumps, sewage pumps, metering pumps, sanitary pump, blower and other products.

Service system:

GRIMM quality:

         GRIMM company pays attention to product quality and service life, all adopt the advanced manufacturing technology and production equipment, and unremittingly research and development of new products, the whole process of quality control to ensure uninterrupted, used in the production process (SPC) process control (TQM) and total quality management; strictly regulate the implementation of GRIMM has not let the quality drag day, effectively guarantee the performance of each product details.

GRIMM major:

          Fluid control technology master core, market leading products, services and solutions that help users improve efficiency, bring critical infrastructure.

GRIMM service:

          We work closely with the user, support a series of system using technology and file reports provide pre-sale, sale, customer service and technical support services, with your trust and support, we will be more perfect and more efficient to provide technical solutions of fluid pump.
