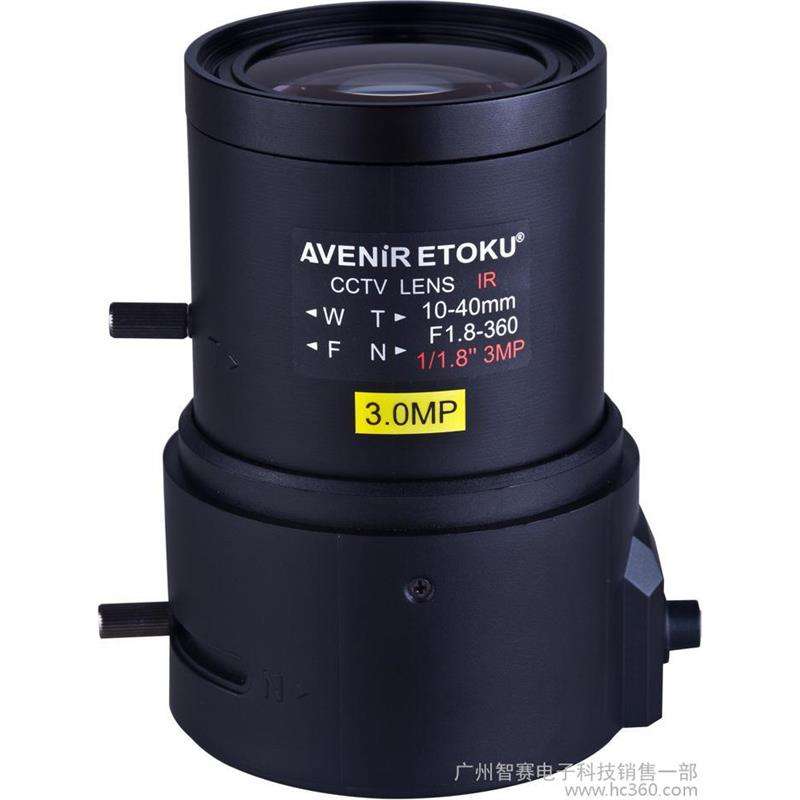

| 10-40mm规格书 | ||
| 型号Model No. | SV1040GNBIRMP | |
| 规格Image size (CCD type) | 1/1.8" | |
| 焦距Focal length | 10～40mm | |
| 光圈值Aperture (F) | F1.8-360 | |
| 后焦距值Back focal length | 13.17～13.19mm | |
| 接口方式Camera mount | C | |
| 操作方式Operation | 光圈Iris | 直流驱动 Direct Drive |
| 聚焦Focus | 手动 Manual | |
| 变焦Zoom | 手动 Manual | |
|
视场角
Field of view (DXHXV)
|
广角Wide | 45.6°×35.5°×25.9° |
| 长焦Tele | 12.6°×10.3°×8° | |
| 最短物距Minimum object distance | 0.5m | |
| 有效口径Effective diameter | 前组Front | Φ32mm |
| 后组Rear | Φ12mm | |
| 波长Coating | 400～950nm | |
| 特性Feature | ED、ASP、IR-C、3.0MP | |
| 外形尺寸Dimension (DXHXL) | Φ45mm×54mm×76.9mm | |
| 工作温度Application temperature | -10ºC ～ +50ºC | |
| 重量Total Weight | 159.6g | |
